Auto Paper Lamination Machine Line
Applicable materials: Plate (base material): Particleboard, density board, and other flat board.
Surface material: PVC, decorative paper
Glue: white latex
Applicable materials: Plate (base material): Particleboard, density board, and other flat board.
Surface material: PVC, decorative paper
Glue: white latex
Product Details
Mini Length Of Board:600mm
Width Of The Workpiece:1220mm
Workpiece Thickness Range:2-50mm
Max.Diameter Of Roll Cover Matrial:400mm
Feeding Speed:1-20m/Min
Mini Length Of Board:600mm
Width Of The Workpiece:1220mm
Workpiece Thickness Range:2-50mm
Max.Diameter Of Roll Cover Matrial:400mm
Feeding Speed:1-20m/Min

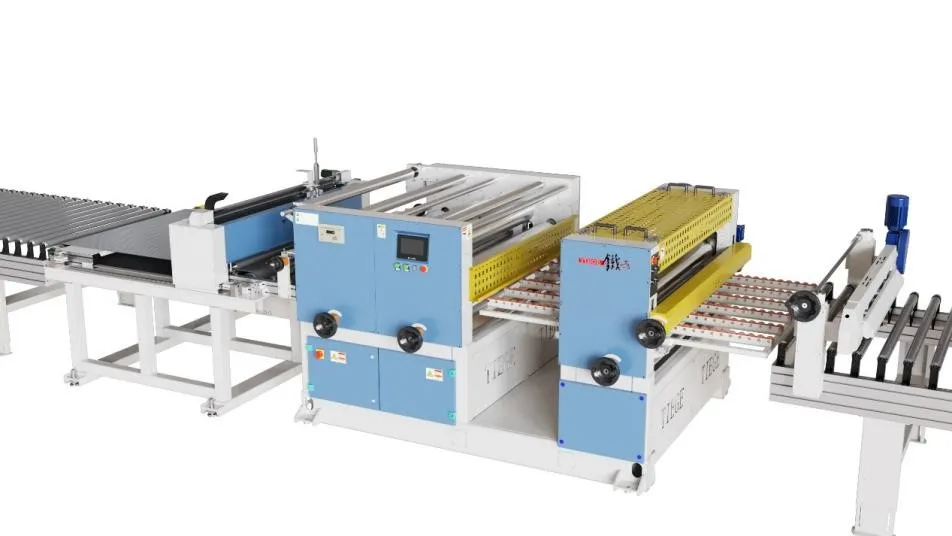

Auto Paper Lamination Machine Line
1. In feed Feeding Section: Responsible for the initial input of raw materials, providing stable and accurate panel positioning for the entire production line.
2.Brush belt dust removal : The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
3.Three-roll glue spreader：Core component for bonding, ensures the adhesive is evenly distributed to guarantee the firmness of the lamination between the panel and the decorative layer.
4.Laminating press：The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
5.Follow up cutting:Tracking cutting synchronizes with the moving speed of materials to cut them to length accurately without stopping the production line.

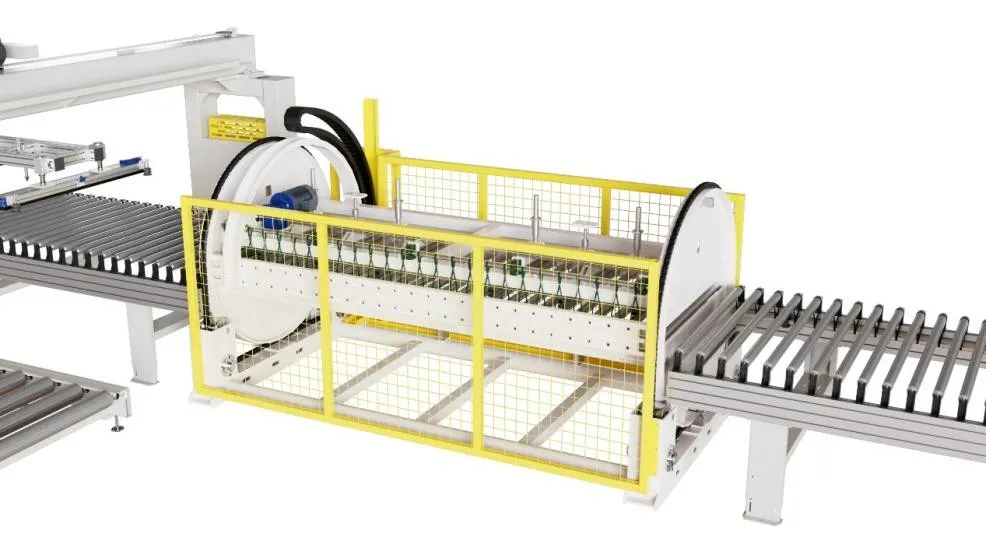

Panel turner:The panel turner automatically flips panels 180°to facilitate double-sided processing and improve production efficiency.
Auto Paper Lamination Machine Line
1. In feed Feeding Section: Responsible for the initial input of raw materials, providing stable and accurate panel positioning for the entire production line.
2.Brush belt dust removal : The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
3.Three-roll glue spreader：Core component for bonding, ensures the adhesive is evenly distributed to guarantee the firmness of the lamination between the panel and the decorative layer.
4.Laminating press：The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
5.Follow up cutting:Tracking cutting synchronizes with the moving speed of materials to cut them to length accurately without stopping the production line.
Panel turner:The panel turner automatically flips panels 180°to facilitate double-sided processing and improve production efficiency.
