This PUR lamination machine (foil/sheet) efficiently completes panel surface lamination, precisely bonding decorative foils and sheets with strong adhesion and a smooth, bubble-free finish. Featuring high automation and compatibility with both foil and sheet production modes, it operates stably and reliably. It is ideal for large-scale production of furniture and decorative panels, significantly improving productivity and lamination quality.

Use Glue：Pur Glue
Mini Length Of Board:600mm
Width Of The Workpiece:1220mm
Workpiece Thickness Range:2-50mm
Max.Diameter Of Roll Cover Matrial:400mm
Feeding Speed:1-10m/Min

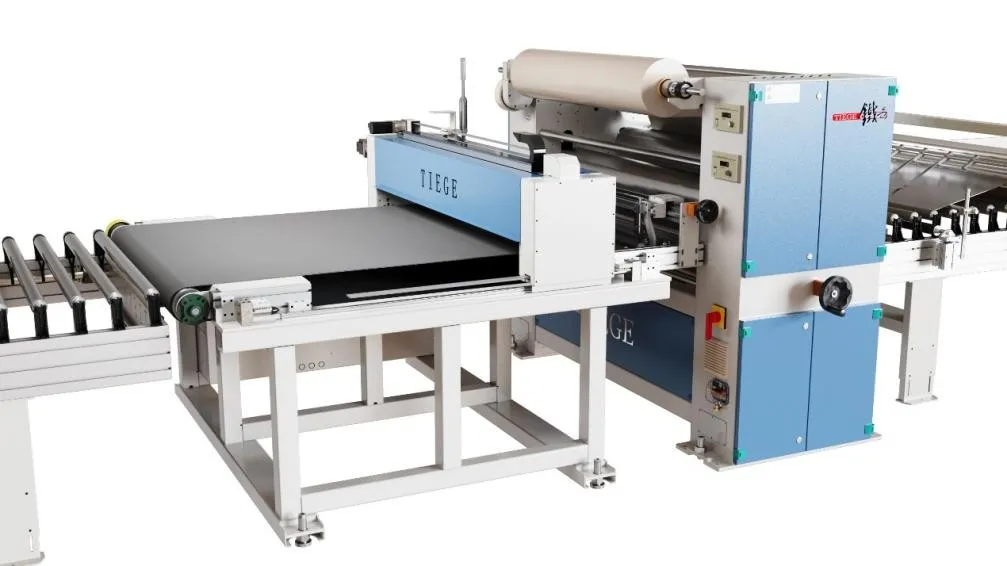

PUR Lamination Machine (Foil/Sheet)

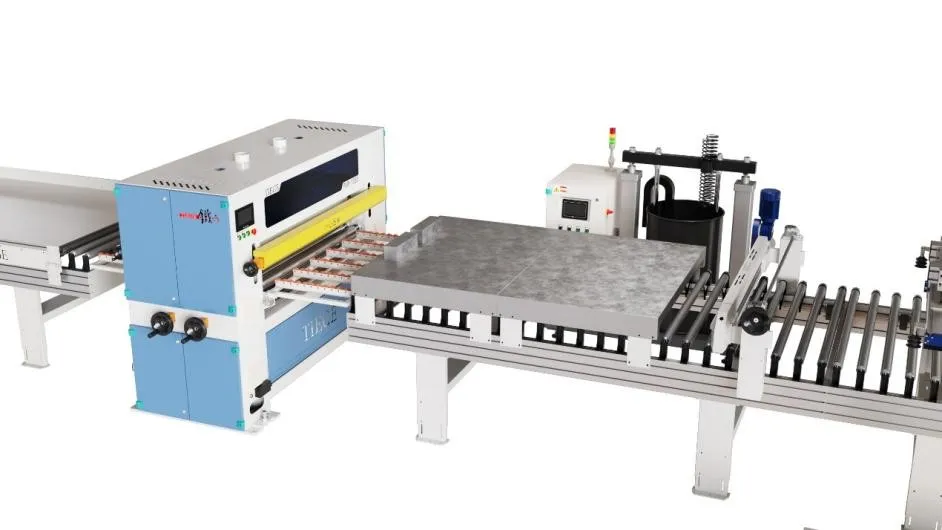

1. In feed Feeding Section: Responsible for the initial input of raw materials, providing stable and accurate panel positioning for the entire production line.
2.Brush belt dust removal : The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
3. Oven tunnel:The oven tunnel heats and dries the panels after glue application, curing the PUR adhesive quickly to firmly bond the decorative materials to the panels, improving bonding strength and production efficiency.
4. Three-roll glue spreader：Core component for bonding, ensures the adhesive is evenly distributed to guarantee the firmness of the lamination between the panel and the decorative layer.

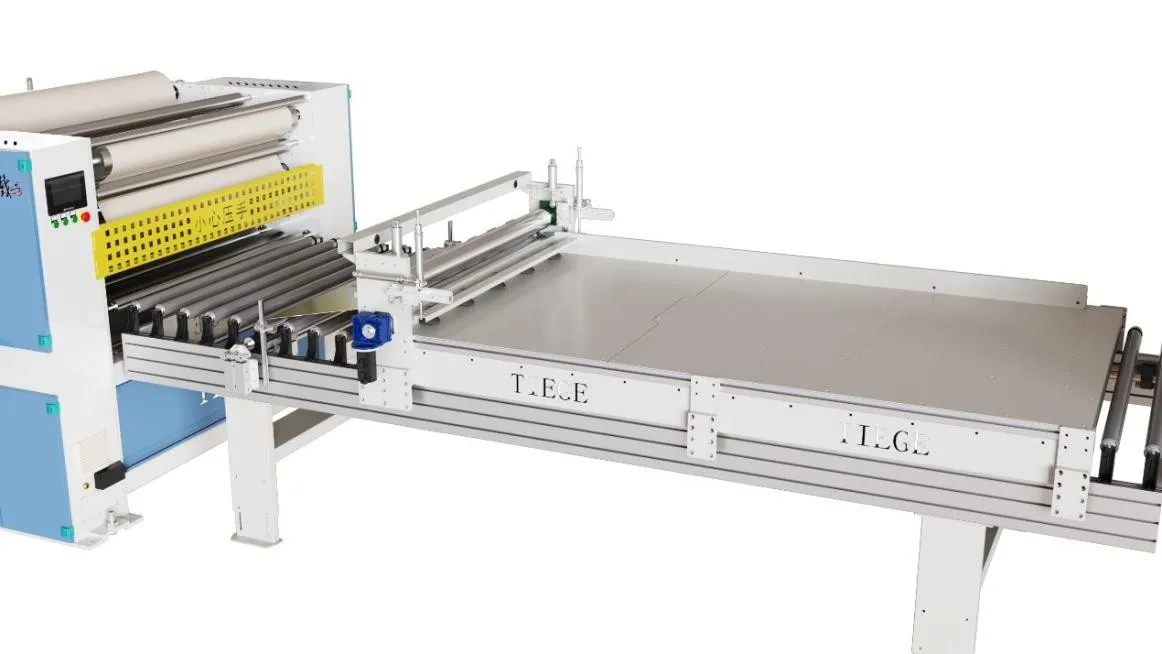

Automatic sheet feeding： Automatic sheet loading automatically transports sheets (e.g., PVC film, decorative paper) to equipment like laminating machines, replacing manual feeding to ensure continuous production and improve efficiency.

Follow up cutting:Tracking cutting synchronizes with the moving speed of materials to cut them to length accurately without stopping the production line.
