PUR Flat Lamination Production Line Series
Applicable materials:
Board (base material): Particleboard, density board, bamboo and wood fiberboard, plywood, polymer plastic board, metal board, foam board and other flat board.
Surface materials: PET high-gloss film, skin-feeling film, PVC, PP, aluminum film, HPL fireproof sheet, CPL fireproof sheet, acrylic and other coils and sheets.
Glue: PUR reactive hot melt adhesive
Applicable materials:
Board (base material): Particleboard, density board, bamboo and wood fiberboard, plywood, polymer plastic board, metal board, foam board and other flat board.
Surface materials: PET high-gloss film, skin-feeling film, PVC, PP, aluminum film, HPL fireproof sheet, CPL fireproof sheet, acrylic and other coils and sheets.
Glue: PUR reactive hot melt adhesive
Product Details
Use Glue：Pur Glue
Mini Length Of Board:600mm
Width Of The Workpiece:1220mm
Workpiece Thickness Range:2-50mm
Max.Diameter Of Roll Cover Matrial:400mm
Feeding Speed:1-10m/Min
Use Glue：Pur Glue
Mini Length Of Board:600mm
Width Of The Workpiece:1220mm
Workpiece Thickness Range:2-50mm
Max.Diameter Of Roll Cover Matrial:400mm
Feeding Speed:1-10m/Min
PUR Flat Lamination Production Line
1. In feed Feeding Section: Responsible for the initial input of raw materials, providing stable and accurate panel positioning for the entire production line.
2.Brush belt dust removal : The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
3.Three-roll glue spreader：Core component for bonding, ensures the adhesive is evenly distributed to guarantee the firmness of the lamination between the panel and the decorative layer.
4.Laminating press：The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
5.Follow up cutting:Tracking cutting synchronizes with the moving speed of materials to cut them to length accurately without stopping the production line.

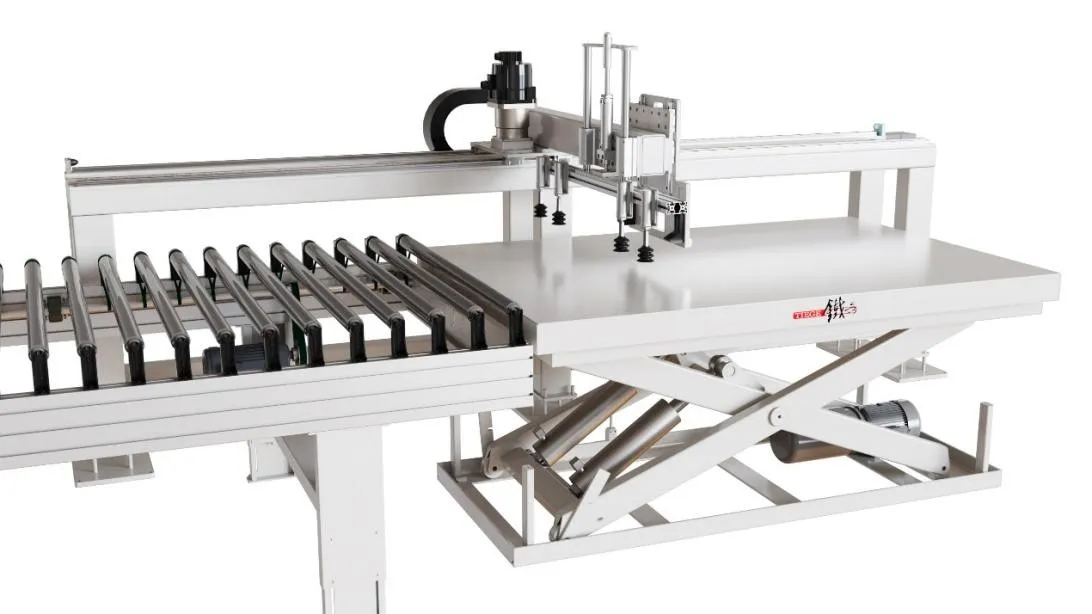

Automatic Loading and Unloading: Automatic loading and unloading automatically completes the feeding and discharging of panels in the production line, replacing manual handling, improving production efficiency and ensuring continuous operation of the assembly line.
PUR Flat Lamination Production Line
1. In feed Feeding Section: Responsible for the initial input of raw materials, providing stable and accurate panel positioning for the entire production line.
2.Brush belt dust removal : The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
3.Three-roll glue spreader：Core component for bonding, ensures the adhesive is evenly distributed to guarantee the firmness of the lamination between the panel and the decorative layer.
4.Laminating press：The brush belt is mainly used to clean dust and wood chips on the surface of plates, and press the plates to prevent deviation, so as to remove dust and stabilize materials.
5.Follow up cutting:Tracking cutting synchronizes with the moving speed of materials to cut them to length accurately without stopping the production line.
Automatic Loading and Unloading: Automatic loading and unloading automatically completes the feeding and discharging of panels in the production line, replacing manual handling, improving production efficiency and ensuring continuous operation of the assembly line.
