Universal Wrapping Machine (Sheet/Foil)
Applicable materials:
Board (base material): Particleboard, density board, bamboo and wood fiberboard, plywood, solid wood, metal plate, aluminum, plastic and other lines
Surface material: PVC, PP, aluminum film, CPL, wood veneer, decorative paper and other coils. Glue: EVA, PUR hot melt adhesive, white latex, oily adhesive.
Applicable materials:
Board (base material): Particleboard, density board, bamboo and wood fiberboard, plywood, solid wood, metal plate, aluminum, plastic and other lines
Surface material: PVC, PP, aluminum film, CPL, wood veneer, decorative paper and other coils. Glue: EVA, PUR hot melt adhesive, white latex, oily adhesive.
Product Details
Useglue:Pur/Eva
Maximum Film Width:420mm
Minimum Processing Length:700mm
Maximum Processing Thickness:90mm
Feeding Speed:5-40m/Min
Useglue:Pur/Eva
Maximum Film Width:420mm
Minimum Processing Length:700mm
Maximum Processing Thickness:90mm
Feeding Speed:5-40m/Min

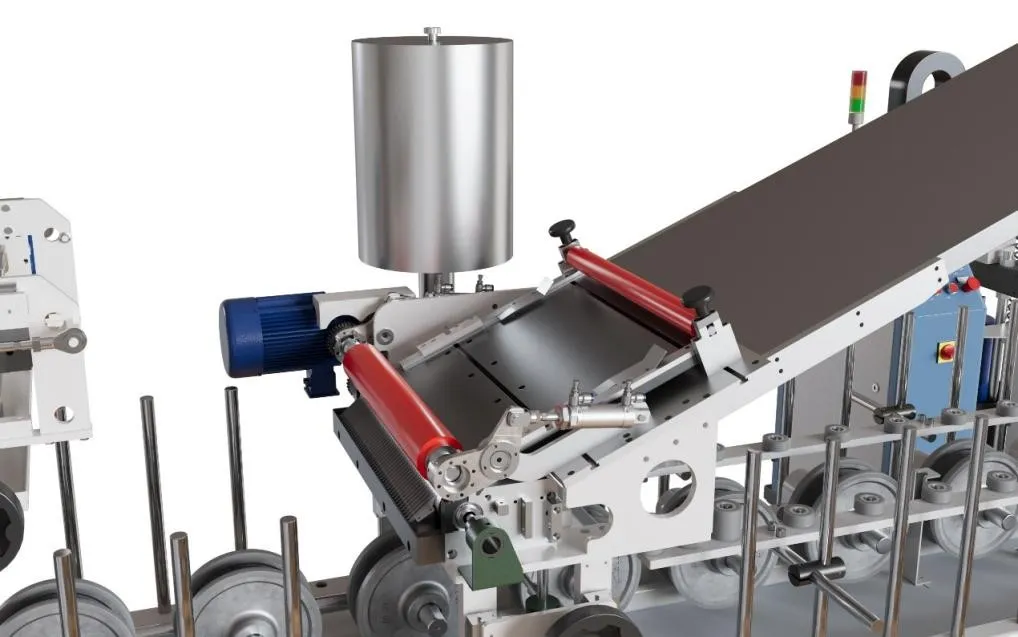

Sheet/Roll profile wrapping machine
Multi-Group Forming Pressure Wheel Frame
Presses decorative film onto profiles point by point according to profile contours, ensuring tight bonding and precise wrapping forming.
Film Unwinding & Web Guiding System
Mounts decorative film rolls, precisely controls unwinding tension, and automatically corrects film deviation to ensure accurate alignment with profiles, providing stable and precise film feeding for wrapping.
Dual-Use (Cold Glue & PUR Hot Melt) Gluing System
Compatible with both cold glue and PUR hot melt processes, evenly applies glue to the back of decorative film via rollers, precisely controls glue thickness, meeting the bonding requirements of various profiles and films.
Sheet/Roll profile wrapping machine
Multi-Group Forming Pressure Wheel Frame
Presses decorative film onto profiles point by point according to profile contours, ensuring tight bonding and precise wrapping forming.
Film Unwinding & Web Guiding System
Mounts decorative film rolls, precisely controls unwinding tension, and automatically corrects film deviation to ensure accurate alignment with profiles, providing stable and precise film feeding for wrapping.
Dual-Use (Cold Glue & PUR Hot Melt) Gluing System
Compatible with both cold glue and PUR hot melt processes, evenly applies glue to the back of decorative film via rollers, precisely controls glue thickness, meeting the bonding requirements of various profiles and films.
